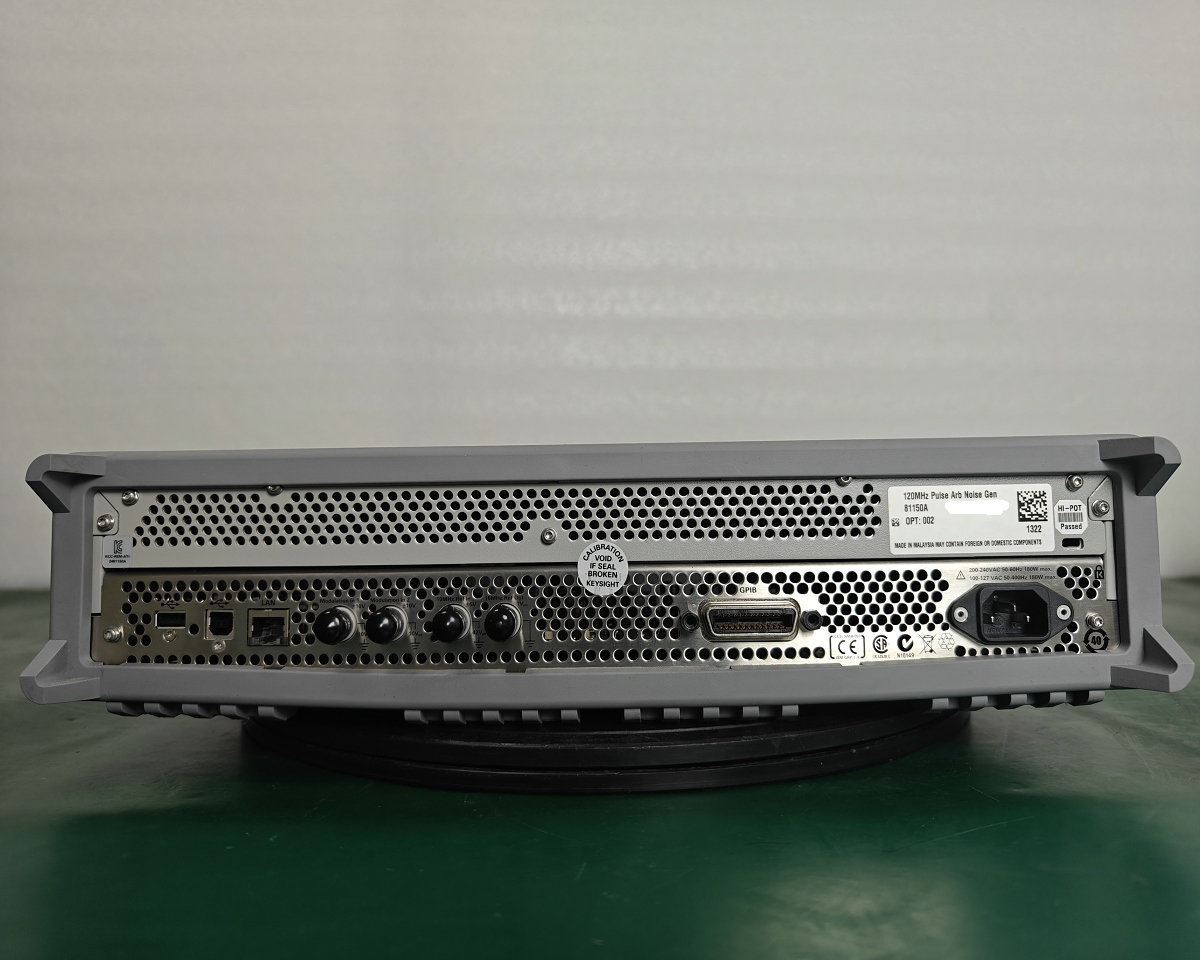

81150A Pulse and arbitrary waveform generator

Features include: Pulse generation: 2 GSa/s, 120 MHz Bandwidth: 240 MHz Output terminal: 5 Ω or 50 Ω (hardware adjustable) Maximum voltage amplitude: 50 Ω: 50 mVPP to 5 VPP On 50 Ω: 100 mVPP to 10 VPP Pulse rise/fall time: Square high-bandwidth amplifier: 2.5 nanoseconds Square high-voltage amplifier: typical 6 nanoseconds Pulse, high-bandwidth current: 2.5 nanoseconds to 1000 seconds Pulse, high-voltage amplifier: 7.5 nanoseconds to 1000 seconds (10% to 90%) Waveform type: sine wave, square wave (variable duty cycle), ramp, pulse, arbitrary waveform, modulated waveform, PRBS mode (optional) Trigger mode: continuous, trigger, gating or manual Output amplitude control: DC offset is added to the AC signal in the output amplifier Optional low-bandwidth amplifier is used to achieve higher output voltage (amplifier gain is 2) Distance hold function prevents failures during speed changes
